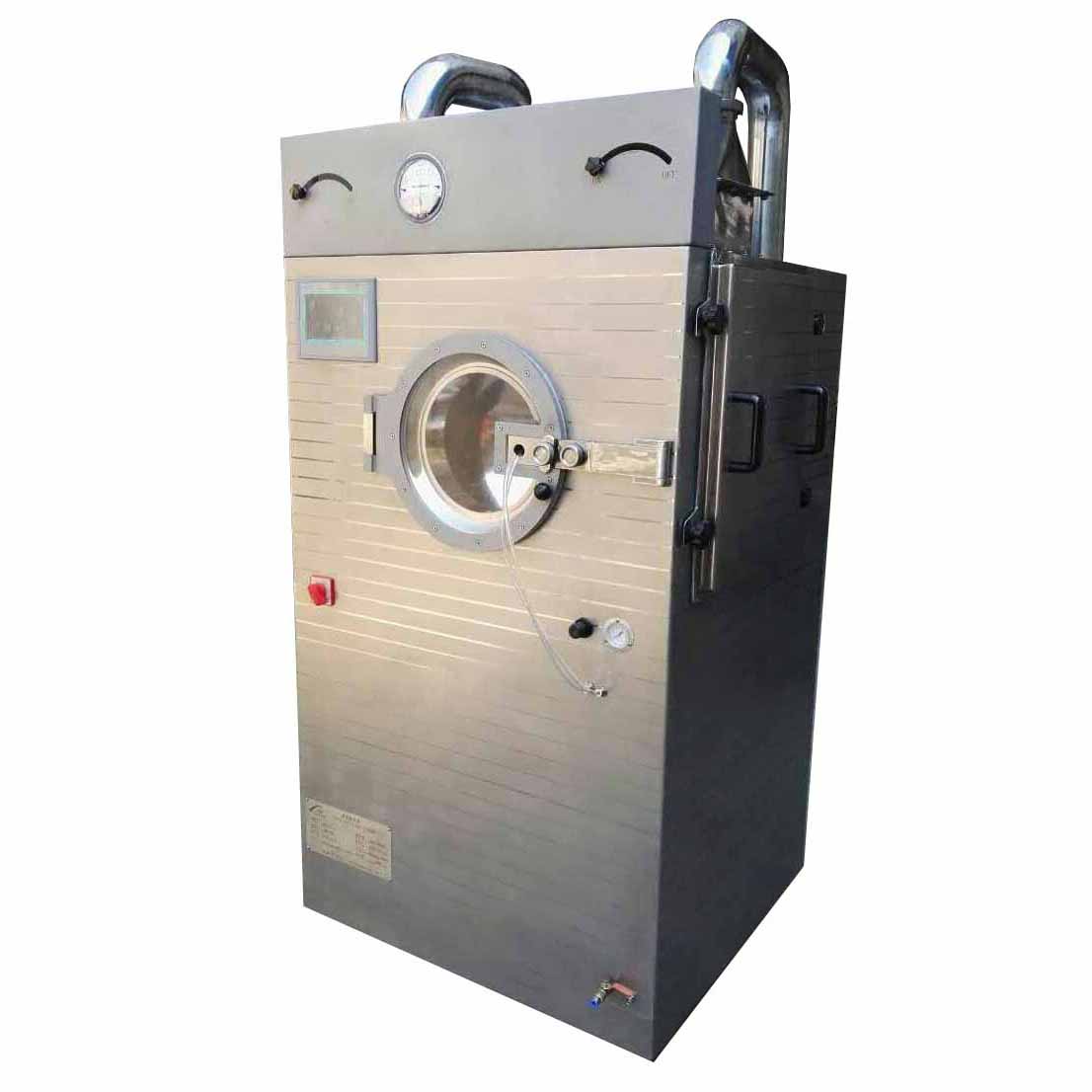

- Host machine: PLC with HMI, high-efficiency, energy saving, dust free, no cross contamination, easy to operate and clean, low noise. Film coating is dry, uniform, firm, compact and smooth.
- Hot air machine: high efficiency filtering, hot air reaches cleaness of 100,000 class.
- Exhausting cabinet: with shockproof and automatic dust removing device.
- Equipped with 2 pcs of spray gun from Japan Anest Iwata.
- Material: SUS304 (SS316L as option)
- PLC and HMI: Siemens brand
- Compliant with GMP requirement.
|Production capacity||Maximum 20kg/batch|
|Coating drum Rotating speed||
|Main motor power||0.55kW|
|Hot air motor power||0.75kW|
|Frequency converter power||0.75kW|
|Exhausting motor power||1.1Kw|
|Blending vessel||Ø350 x 350|
