Application
Applicable for various of solid products such as ampoule, vial, tablet, granule, softgel, syringe, etc.
Brief introduction

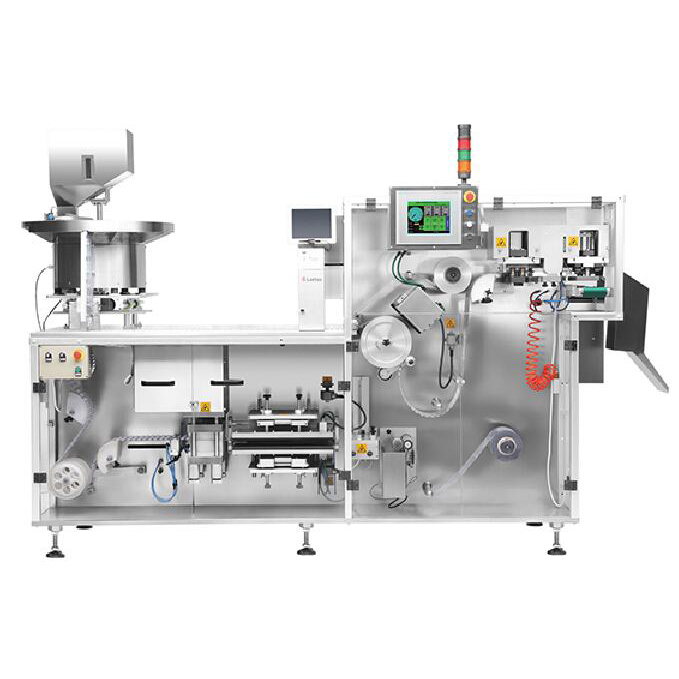

- Name: roller type blister packing machine
- Model: DPH-190
- Other model available such as DPH-300, DPH-320, DPH-400, etc.
Main advantage
- Working mode: plate type forming, roller type sealing, continuous transmission
- Capacity: high speed, 180 cuts/min for Alu-PVC, 80 cuts/min for Alu-Alu
- Current users: top Pharm factories
| Maximum cutting speed | Alu-PVC: 180 cuts/min Alu-Alu: 80cuts/min |
| Maximum material line speed | Alu-Alu: 8m/min |
| Suggested PVC specification | Thickness: 0.25-0.35mm Maximum width: 190mm Reel core diameter: 75-76mm Maximum reel diameter: 600mm |
| Suggested Alu foil specification | Thickness: 0.02mm Maximum width: 190mm Reel core diameter: 75-76mm Maximum reel diameter: 600mm |
| Maximum forming depth | Alu-PVC: 12mm (can be customized to 18mm) Alu-Alu: 10mm |
| Maximum forming area | 170 x 170mm |
| Maximum index length | 190mm |
| Power supply | AC380V/50Hz, 9kW |
| Compressed air | 0.6-0.9MPa, <15m3/h |
| Water | 15-20C., <2m3/h |
| Dimension (including feeder) | 3450 x 1250 x 2200mm |
| Weight | 2000kgs |
| Noise | <75dB |
