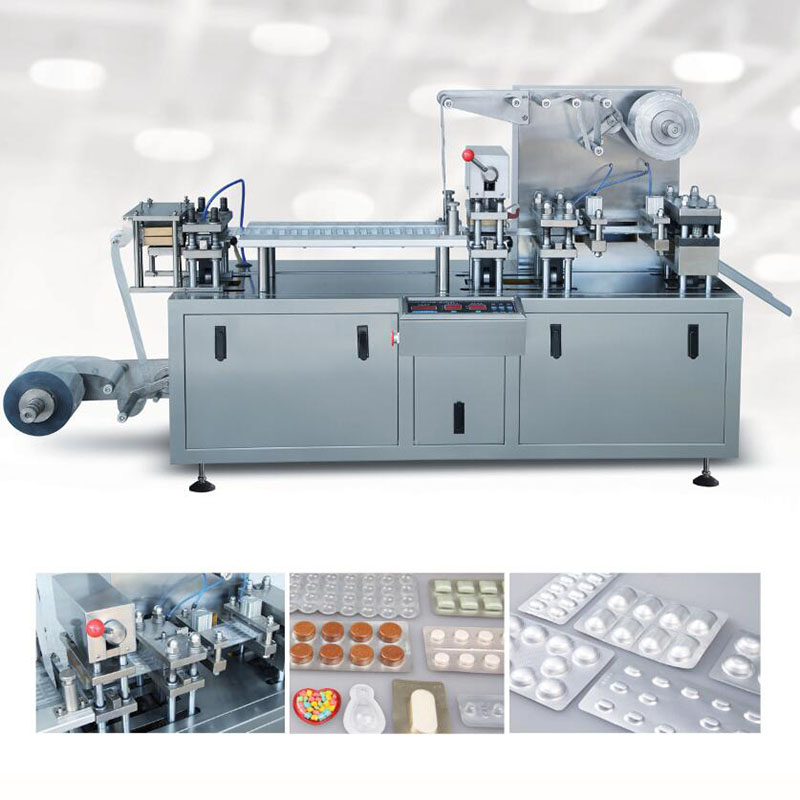

DPP-120H Automatic Blister packing Machine is our advanced equipment designed under updated improvement. It adopts the integral technology applying frequency inverter for speed control and mechanism, electricity, light and air to machine. Its design is in strict compliance with GMP standard and takes lead in the blister packer’s filed. Featuring advanced functions, ease in operation, high output, the machine is the most ideal packing equipment for large and medium size pharmaceutical enterprises, health food and food stuff trades
- Adopts PC circuit board with control panel, frequency inverter for speed control, mechanical traction, length of blister traction is adjustable within the range.
- The machine station module type design of level frame, good sight, safe and convenient operation.
- Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better (option).
- Universal feeder is equipped to ensure filling rate up to 99.5%
|Punching frequency||10-40 time/min|
|Maximum forming area||120 x 90 mm|
|Maximum forming depth||20mm (can be customized)|
|Compressed air pressure||0.4~0.6 MPa|
|Compressed air consumption||0.2 m3/min|
|Power supply||220V/380V, 50Hz|
|Machine size||2070 x 650 x 1060 mm|
|Machine weight||560 kgs|
