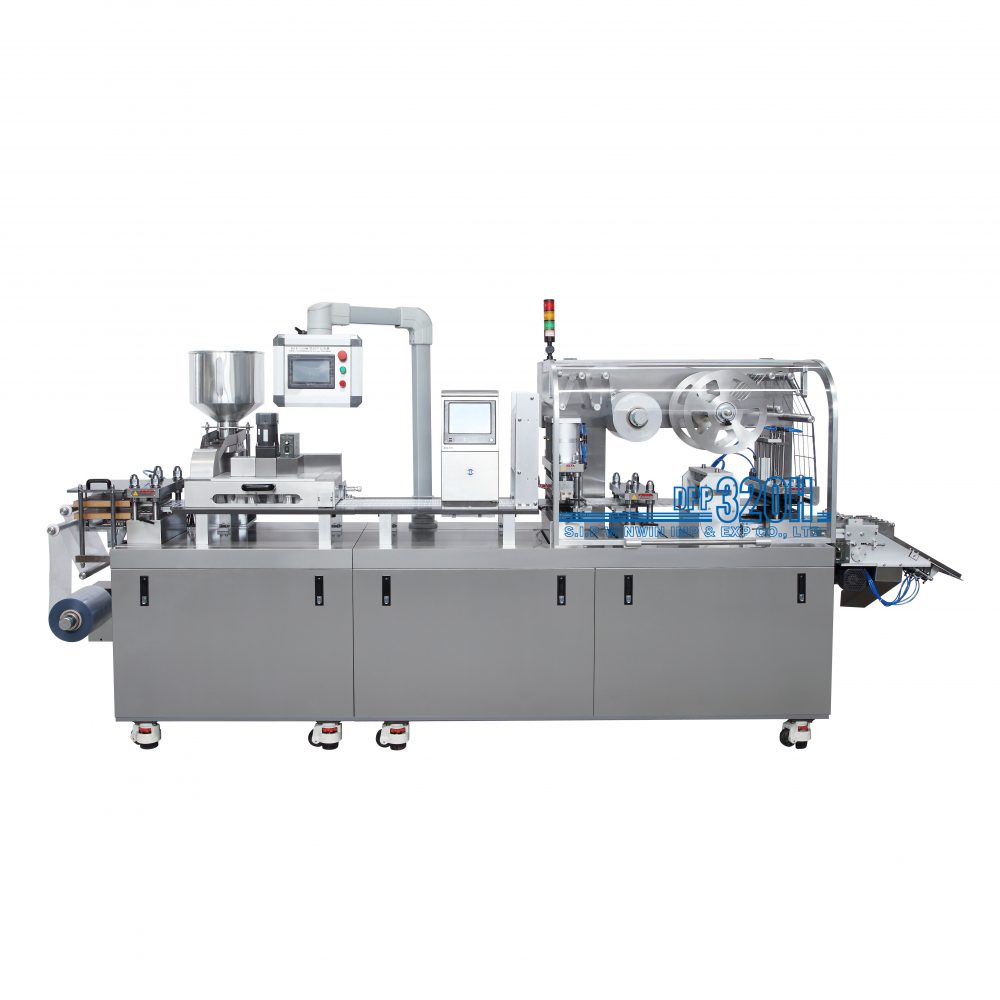

Description
- Compact structure, whole machine 4m long.
- Compatible for both alu-PVC and alu-alu packs.
- Servo traction.
- Safely cover between heat sealing station and punching station.
- Quick connection die for forming station and heat sealing station.
- No dead angle, easy for clean and maintenance.
- With PVC, PTP fragment shutdown and automatic alarm function.
- Automatic alarm when safely cover opens.
- Three station adjustment, heat seal station, indentation station, and punching station.
- The electric, compressed air and water are independent. The structure is simple, safer and more convenient for maintenance and operation.
Click here to watch the video of the machine
| ITEM/MODEL | DPP-320H |
| Punching frequency | Alu-PVC: 20~180 plates/min
Alu-alu: 20~120 plates/min |
| Max forming depth | Alu-PVC: 22mm
Alu-alu: 14mm (made to order) |
| Adjustable range of travel | 40-160mm (made to order) |
| Clean compressed air | Press0.6-0.8Mpa |
| Compressed air | ≥0.2m3/min |
| Power | 380V/50Hz, 6Kw |
| Dimension | 3965x836x1780cm |
| Weight | 2200kg |
