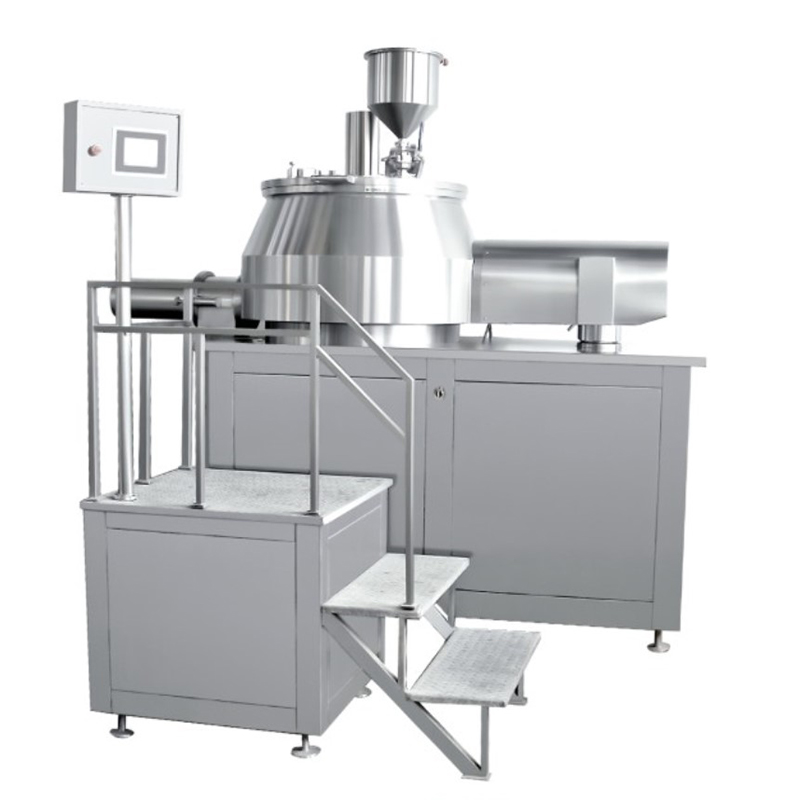

- The powder raw material and binder in barrel will be stirred into wet soft material by stirring oar, and then be cut into uniform wet granule by cutting oar.
- The machine adopts horizontal barrel(cone) structure. Its structure is reasonable.
- The inner surface of equipment has no dead corner. It works at sealed state and conforms to the requirements of GMP.
- Short granulating time, high efficiency and energy saving.
- The character of granule is uniform and the fluidization of granule is good. It provides ideal granule material for tablet pressing procedure.
- Compare with traditional process, it can reduce 25% of binder and shorten drying time too.
- Each batch needs 2 minutes to dry mixing and 1~4 minutes to granulating. Compared with traditional process, its efficiency can raise 4~5 times.
- Whole operation has strict safe protective measures.
- The closing and open of lid is finished by pneumatic cylinder.
- Silencer could promise noise below 75dB.
- Inlet and outlet explosion proof valve, explosion fan as option.
- Installation manual, operation manual, service manual, spare part, drawing, wiring diagram, layout, assemble drawing will be delivered with goods.
- Equipped with voltage stabilizer to prevent damage due to power fluctuations.
|Mixing power (Kw)||6.5/8||6.5/8||11/14||11/14||13/16||18.5/22||22/28|
|Cutting power (Kw)||2.4/3||2.4/3||4.5/5.5||4.5/5.5||4.5/5.5||6.5/8||9/11|
|Mixing speed (rpm)||200/400||180/270||180/270||180/270||140/220||106/155||80/120|
|Cutting speed (rpm)||1500/3000|
|Air pressure (Mpa)||0.3-0.6|
|Air consumption (m3/min)||0.13||0.2||0.25||0.25||0.3||0.4||0.4|
