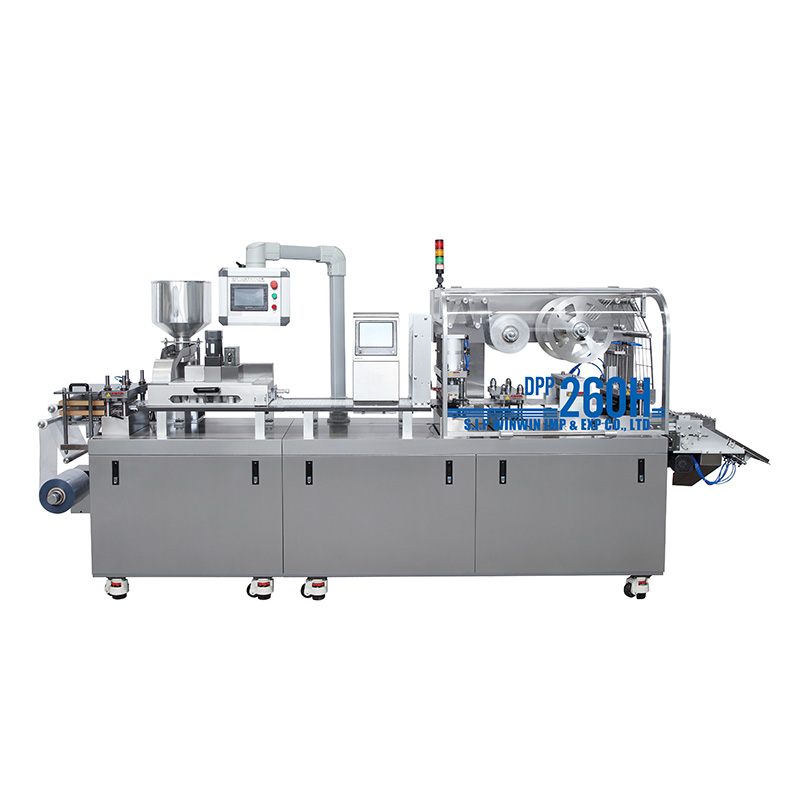

- Compact structure, whole machine 3.5m long.
- Compatible for both alu-PVC and alu-alu packs.
- Servo traction.
- Safely cover between heat sealing station and punching station.
- Quick connection die for forming station and heat sealing station.
- No dead ends, easy for clean and maintenance.
- With PVC, PTP fragment shutdown and automatic alarm function.
- Automatic alarm when safely cover opens.
- Three station adjustment, heat seal station, indentation station, and punching station.
- The electric, compressed air and water are independent. The structure is simple, safer and more convenient for maintenance and operation.
|Punching frequency||Alu-PVC: 20~180 plates/min
Alu-alu: 20~120 plates/min
|Max forming depth||Alu-PVC: 22mm
Alu-alu: 14mm (made to order)
|Adjustable range of travel||40-160mm (made to order)|
|Clean compressed air||Press0.6-0.8Mpa|
