- Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
- Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.
- Easy speed selection and closed capsule length adjustment.
- Electrical Appliance control system approved to CE, and international standard.

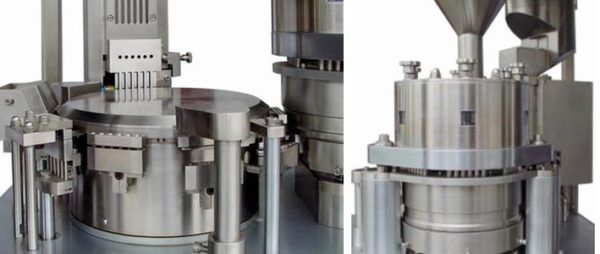

- Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
- Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
- Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.
- Improved the inner design of Mould rotating table, Import 90 pcs beeline bearings for each machine from Japan directly, guaranteed the equipment precision and extended the life of machine.
- Enlarge the size of dosage pan (Enlarge 3cm); Increase the powder flowing uniformity in the dosage pan, according to the international standard.
- Adopt three dimensional control elements; Take the undersurface plane of dosage as datum, so as to eliminate the natural transmutation of the dosage pan and copper saucer. It’s the special design at domestic.
- This automatic capsule filling machine is developed by our company and absorbed advanced technologies at home and abroad. The machine has features of elegant, smooth, low noise, easy to operate, and superior in performance.
- Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill), also can be used to fill vitamin, foodstuff and animal drug, etc.

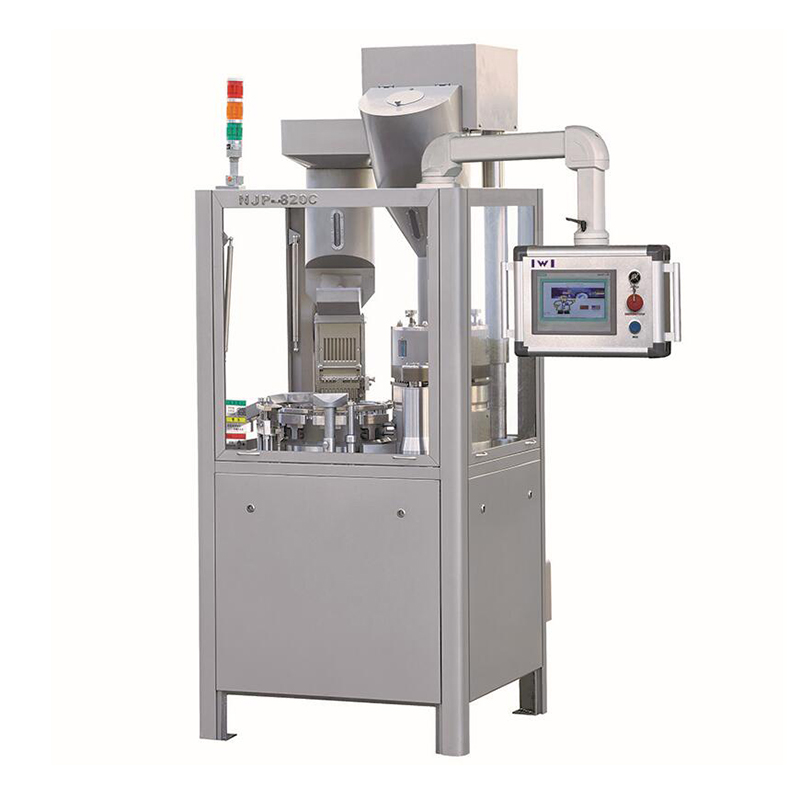

Click here for larger capacity models if this automatic capsule filling machine NJP-820C doesn’t meet your requirement for production capacity.
|Power Supply||380V/220V, 50Hz||380/220V, 50Hz|
|Total power||Motor 1.5kw
|No.of segment bores||6||3|
|Vacuum||20m3/h, 0.04-0.08Mpa||20m3/h, 0.04-0.08Mpa|
|Dust||17.6Kpa, 180m3/h||17.6Kpa, 180m3/h|
|Making rate||Empty capsule 100%
Full capsule over 99%
Full capsule over 99%
|Suitable for Capsule||00, 0, 1, 2, 3, 4, 5#||00, 0, 1, 2, 3, 4, 5#|
