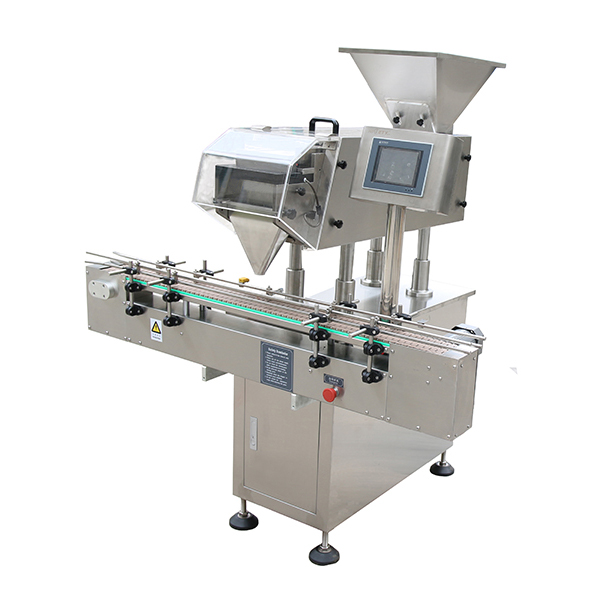

Empty bottle are normally fed by turntable and conveyed to filling station by conveyor. Tablets or capsules are orderly fed to the material feeding mechanism by vibrating feeding channels. Photoelectric sensors are equipped at the material feeding mechanism to count the quantity of the filled material. Filling stops when the filled material reaches set quantity, and filled bottle will be conveyed to capping station by conveyor.
- Wide adaptability, used for tablets (including irregular shape tablets), capsules, softgels (including irregular shape, transparent or opaque softgels) and most kinds of solid granules.
- Machine runs accurate and reliable even in heavy dust conditions by using our own original anti-dust sensor technology.
- Vibration feeding, special patent filling part, feeding evenly, no breakage to the material.
- (Optional) special structure filling nozzle prevents materials jam. Even small mouth bottle can be quickly filled.
- High-degree of automation. No bottle no counting or filling. Automatically remove a certain size of broken tablets. Self-diagnose and alarm if any error is detected.
- Easy to change products, no need any tools to remove, convenient and quick.
- Touch screen control panel, data such as speed, counting quantity, mulfunction, etc. are real time displayed on touch screen. Ten groups of formulas can be stored, easy to adjust and use.
- Microchip chip is from U.S, photoelectric elements are Taiwan origin, stable and durable.

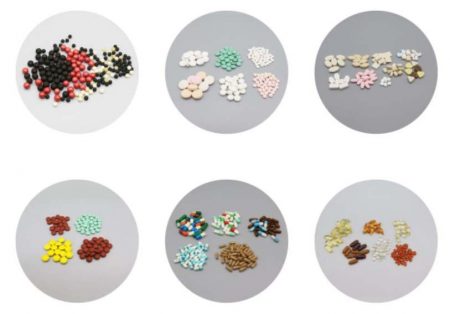

Softgel similar to capsule size
Round shape tablet ф5.5mm-35mm
Irregular shape tablets
|20~50 bpm||20~70 bpm||
Adjustable from 2-9999 per bottle
