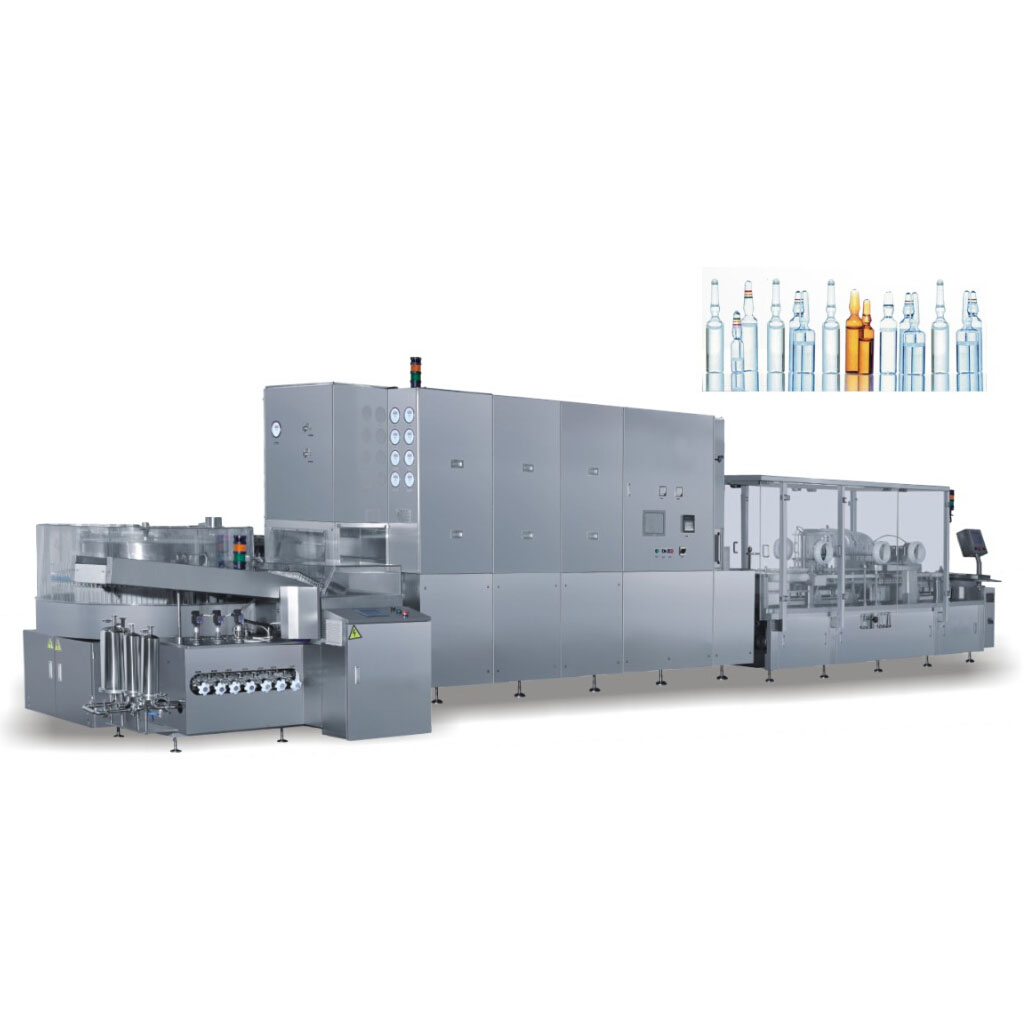

This monoblock line is made up of Model QCK vertical ultrasonic washing machine, Model ASMR hot air circulation drying & sterilizing machine, Model DGFB ampoule filling and sealing machine. It can be combined withother machine and also can be used seperately. This line can finish the following procedures: transporting bottle with netbelt, pouring water, ultrasonic washing, flushing, gas filling, preheating, drying and sterilizing, cooling, nitrogen charging before filling, filling, nitrogen charging after filling, sealing. After upgrading, this line can also be used for vial injectable production. It conforms to the latest GMP requirement, and is the highest speed and completest function injectable production line.
| Model | QSGF8/1-20 | QSGF10/1-20 |
| Suitable size (ml) | 1-20ml | 1-20ml |
| Capacity (pcs/h) | 8000-24000 | 10000-30000 |
| Water consumption | 0.2mpa, 0.4-1.0cbm/h | 0.2mpa, 0.4-1.0cbm/h |
| Air consumption | 0.15mpa, 30-75cbm/h | 0.15mpa, 30-75cbm/h |
| Gas consumption | 0.2-0.3mpa, 1.5-2.5cbm/h | 0.2-0.3mpa, 1.5-2.5cbm/h |
| Oxygen consumption | 0.2-0.3mpa, 1.2-1.5cbm/h | 0.2-0.3mpa, 1.2-1.5cbm/h |
| Power | 380V50hz, 71kw | 380V50hz, 71kw |
| Dimension (mm) | 9940 × 2003 × 2445 | 10100 × 2260 × 2455 |
